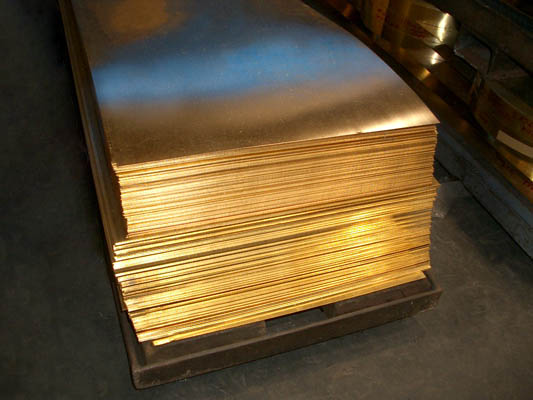

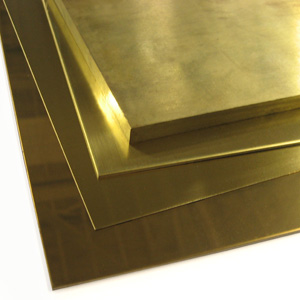

BRASS & NAVAL BRASS PLATES, SHEETS & CIRCLES
It covers the manufacture of hot rolled plates & circles, as well as Cold Rolled Sheets. The primary uses of the plates & circles are :
- HEAT EXCHANGERS
- SEAWATER APPLICATIONS
- ELECTRICAL INDUSTRY
- HARDWARE INDUSTRY
- DIES, ETC
PRODUCTS
Thickness (mm)
Width (mm)
Length (mm)
Hot Rolled Plates
8 to 25
26 to 32
33 to 45
46 to 55
800
800
700
635
1525
1350
1000
635
Cold Rolled Sheets
Cold Rolled Sheets
0.8 to 3
3 to 6
6 to 8
356
610
610
1220
1220
1525
SPECIFICATIONS
Naval Brass Plates, Sheets & Circles
Naval Brass Plates, Sheets & Circles
ASTM SB 171 UNS NO. C 46400
BS 2875 CZ 112
IS 8362 ALLOY 4 & 5
Brass Plates, Sheets & Circles
ASTM SB 171 UNS NO. C 36500
BS 2875 CZ 123
IS 410
TUBE SHEET DRILLING
We provide specialised services of Tube Sheet drilling on CNC Machine as per drawings provided by our customers
We can perform the following operations :
- Drilling
- Reaming
- Grooving
- Milling
- Slot Cutting
- Tapping
